Carbon Fiber HealthChair
Open up a new life where mobility
is no longer a barrier.
Carbon Fiber HealthChair
Open up a new life where mobility is no longer a barrier.
High Strength, Lightweight
Featuring a carbon fiber frame, this wheelchair weighs only 19kg with the battery, half the weight of traditional electric wheelchairs, while supporting a safe load of up to 150kg—the lightest in its class.
High Strength, Lightweight
Featuring a carbon fiber frame, this wheelchair weighs only 19kg with the battery, half the weight of traditional electric wheelchairs, while supporting a safe load of up to 150kg—the lightest in its class.
3-Second Folding
Lightweight and folds in just 3 seconds for ultimate portability and storage. Quick 3-second fold and lightweight design allow for easy transport and storage, wherever you go.
3-Second Folding
Lightweight and folds in just 3 seconds for ultimate portability and storage.
Quick 3-second fold and lightweight design allow for easy transport and storage, wherever you go.
Perfect Performance
Long-lasting battery
The high-capacity battery can provide power to the product for up to 15/30 kilometers, ensuring more than enough power for daily travel.
Abundant Power
With its abundant 250W*2 power, it can achieve a climbing angle of 12 degrees (20% slope), surpassing the competition by far.
Silence EABS Electromagnetic Brake
Maximize safety by providing automatic braking by a power outage and has a braking capacity of up to 15 degrees on slopes.
Suitable for traveling
The wheelchair can be checked in after detaching the battery while the batteries can be carried on board, no more restrictions on traveling.
Battery Allowed Onboard
Wheelchair Checked Baggage
電池上機
輪椅寄艙
Suitable for traveling
The wheelchair can be checked in after detaching the battery while the batteries can be carried on board, no more restrictions on traveling.
電池上機
輪椅寄艙
Battery Allowed Onboard
Wheelchair Checked Baggage
Incomparable User Experience
A 7-speed level setting and speed display controller that provides a simple, intuitive, and comfortable control experience.
Manual/Electric Mode
Easily switch to manual mode for caregiver assistance.
Manual/Electric Mode
Easily switch to manual mode for caregiver assistance.
Wireless Remote Control Driving
Option to purchase the wireless remote which enables users to drive and through a Bluetooth-encrypted wireless remote control. Can be also used for transporting items.
Wireless Remote Control Driving
Option to purchase the wireless remote which enables users to drive and through a Bluetooth-encrypted wireless remote control. Can be also used for transporting items.
Foldable Armrest Design
Providing a 3-way entry and dining-on-the-device feature, able to reduce the pressure of the caregivers.

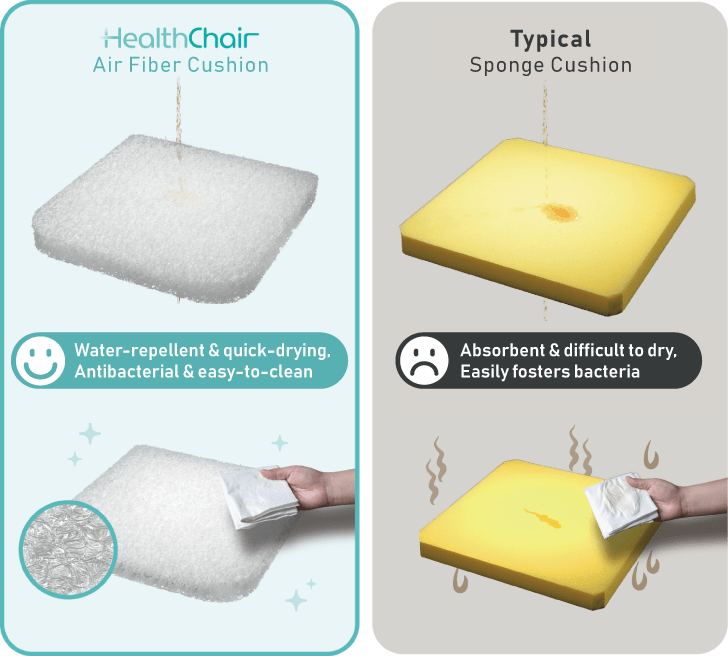

Custom comfort cushion
Our custom air fiber cushion provides exceptional comfort and breathability, superior stain resistance and quick-drying compared to standard foam cushions, ensuring easy cleaning and hygiene, and is highly durable, resisting deformation.
Lumbar Support Pad
Tear-resistant mesh back with heavy-duty back padding, designed for diverse usage scenarios.
Front and Rear Suspension System
A specially designed front and rear suspension system that absorbs the bumps from uneven surfaces, providing a more comfortable riding experience.
Extra-large storage space
A dedicated storage bag with a capacity of 11 liters is located at the bottom, making travel convenient.
Dedicated Phone Holder
Made of carbon fiber, lightweight and durable. Easy to adjust pitch angle and direction according to user’s needs.
Dedicated Phone Holder
Made of carbon fiber, lightweight and durable. Easy to adjust pitch angle and direction according to user’s needs.
More Accessories To Explore
More Accessories To Explore
Multinational Certifications
US Food and Drug Administration (FDA) registered medical device product, complies with ISO7176, EN12184, and IEC60601.
FDA Registered
ISO 7176
EN 12184
IEC60601
Specifications
Model:
Z Carbon – ZC1
Weight :
17kg (Net weight) / 19kg (Including the battery)
Maximum Load Capacity :
≤ 150kg
Maximum Speed :
≤ 6km/h
Maximum Range :
≥ 15km / ≥ 30km
Motor Power :
Rated 500W (250W2), Peak 800W
Charging Time :
4hrs/ 7hrs
Climbing Angle :
≤12°(20%)
Braking Angle :
≤12°(20%)
Front Wheel Size:
16.5cm(6.5 inch)
Rear Wheel Size :
21.5cm (8.5 inch)
Minimum Turning Radius :
63cm(Without footrest) / 75cm(With footrest)
Maximum Unfolded Dimensions :
90 x 63 x 97 cm
Seat Size :
40 x 40 cm
